Ultra Acrylic Walk-In Tub, Fast Fill Faucet, 2″ Dual Drain – 30″W x 52″L (76cm x 132cm)
From: $4,686.00
The Ultra is one of Ella’s newest and most modern looking walk-in tubs. The unique inward swing door is extra-wide at the top to create an easy, wide entry.
Made from custom brushed aluminum with a frosted tempered glass window this elegant tub provides easy in and easy out. Available with Ella’s very own independent foot massage and a wide variety of jetting packages, this tub would be an elegant, modern addition to any home. The Ultra Acrylic Walk-in Bathtub is recommended for average body types. The model shown here is the Air + Hydro Massage jetting option with an Ella 5 piece fast-fill faucet, right hand door & drain position. To see all other jetting options, click on Learn More. Choose your options below for specific details, images and pricing.
The Ultra is one of Ella’s newest and most modern looking walk-in tubs. The unique inward swing door is extra-wide at the top to create an easy, wide entry.
Read MoreMade from custom brushed aluminum with a frosted tempered glass window this elegant tub provides easy in and easy out. Available with Ella’s very own independent foot massage and a wide variety of jetting packages, this tub would be an elegant, modern addition to any home. The Ultra Acrylic Walk-in Bathtub is recommended for average body types. The model shown here is the Air + Hydro Massage jetting option with an Ella 5 piece fast-fill faucet, right hand door & drain position. To see all other jetting options, click on Learn More. Choose your options below for specific details, images and pricing.
Note: Bather’s dimensions shown in the product images: 5’7″ / 125 lbs
Choose Included Features
Ultra Inward Swing Door Acrylic Walk-In Bathtub
The walk-in tub shell of the Ultra is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one wall mounted U-shape stainless steel grab in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.
This standard size walk-in tub measures at 30”W x 52”L and has a spacious 21” wide seat. The Ultra’s main feature is the door which is made from beautiful, frameless brushed aluminum with a frosted tempered glass window to give it a sleek, contemporary look. The S-shape door is 21 1/4″ wide, and swings into the tub to allow the bathers to easily enter and exit the tub without being in the way of other bathroom fixtures such as a toilet or vanity. These inward swing doors are also easier to close once inside the walk-in tub. The extended stainless steel door lever was uniquely designed to bypass the bathers’ leg when locking and unlocking the door in a seated position. The lever lock, along with the door gasket, creates a secure and watertight door seal, providing you with a safe, leak-free bathing experience. Another key feature available on the Ultra is the stainless steel towel bar securely attached to the outside of the walk-in tub shell.
The Ultra comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.
This model also includes one reversible end panel for left or right corner installation options. The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell. An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. Please visit the “Downloads” tab for complete warranty information.
Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy
The Ultra model offers 4 jetting & therapy options: 1) Hydro; 2) Air & Hydro; 3) Hydro & Microbubble Therapy; 4) Hydro & Independent Foot + Calf Massage. Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.
1. Hydro Massage System
Download Schematics: Hydrotherapy Massage System

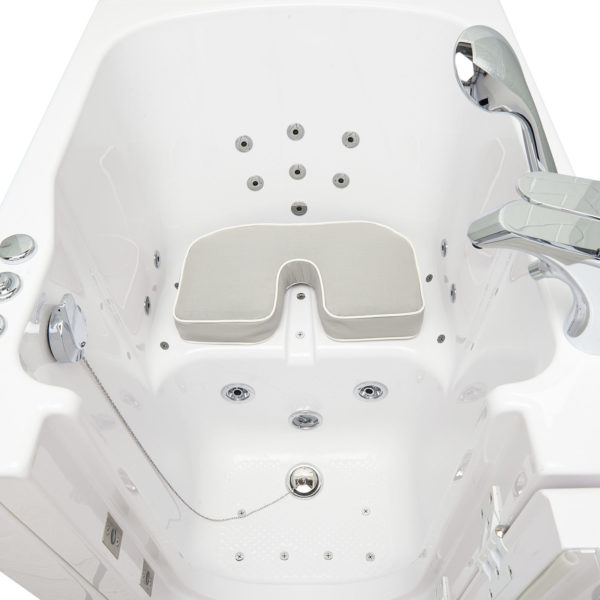

The Ultra walk-in tub has sixteen (16) strategically placed hydro jets in order to deliver optimal therapeutic relief. Ten (10) upper fixed jets work to provide relief for your back, hips and thighs, while six (6) lower adjustable jets massage your feet and calves.
The Hydro Massage System includes: a hydro pump with an in-line water heater, an eco-friendly ozone sterilization system, a hydro massage intensity control dial, and a strategically positioned hydro jet system for targeted and effective massaging.
The in-line water heater is designed to maintain the water temperature at a constant level while bathing for maximum comfort. The ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. This sterilization system is especially helpful in eliminating odors and hygienic maintenance.
Lastly, the hydro massage intensity control dial allows you to adjust the strength of the water stream by adding more or less air into the hydro system.
2. Hydro + Air Massage System
Download Schematics: Hydrotherapy + Air Massage System
The Ultra walk-in tub has sixteen (16) strategically placed air jets in order to deliver rejuvenating therapeutic relief. Eight (8) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional eight (8) jets located in the lower foot area deliver a gentle massage to your feet and calves. Additionally, two (2) of the eight (8) upper jets are bidet jets.
The air massage system includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and auto-purge to maintain an air system free of any build ups.
Ella’s Air Jet System includes an Auto Purge System. It automatically activates 20 minutes after completing your bath in order to blow out any excess water and bacteria from the air jet lines. Auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent mildew build up.
3. Hydro + Infusion™ MicroBubble Therapy
Download Schematics: Hydrotherapy Massage + Microbubble Therapy
Ella’s Infusion™ MicroBubble Therapy System consists of a single Microbubble jet connected to a hydro pump and a Microbubble tank system. The high-pressure hydro pump, along with the Microbubble tank, breaks down the water molecules into billions of tiny bubbles which are then sent out through a single jet. At the push of an on/off push control button, this feature can provide a moisturizing, exfoliating therapeutic experience all while detoxifying and relieving skin related issues. For more information about Infusion™ MicroBubble Therapy, click here.
4. Hydro + Independent Hydro Foot Massage System
Download Schematics: Hydrotherapy + Independent Hydro Foot Massage
Description The Hydro + Independent Foot and Calf Massage package uses two independently run pumps to give bathers a simultaneous full body massage and a powerful foot and calf massage. The strategically positioned upper and lower hydro jets powered by two hydro pumps include an intensity control dial to adjust the strength of the water pressure to your liking from a gentle pressure to a more rigorous Bathers can enjoy an independent foot and calf massage within minutes by simply filling the foot well up the seat level. Please note: if you choose this jetting package, your walk-in bathtub will come with one (1) in-line water heater that will be connected to the lower jets and used with the independent foot massage feature, and an ozone sterilization system connected to the upper jets.
2. Ella 5 Piece Fast Fill Faucet

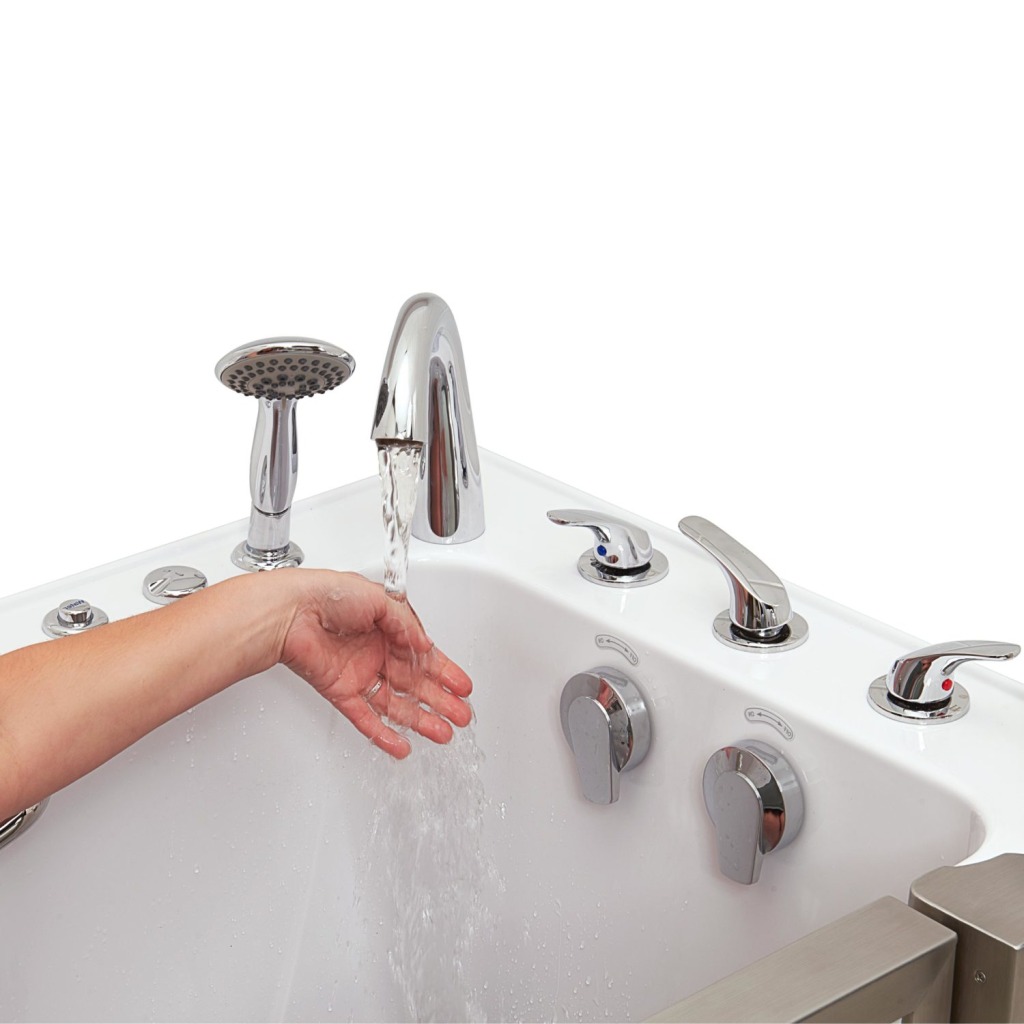

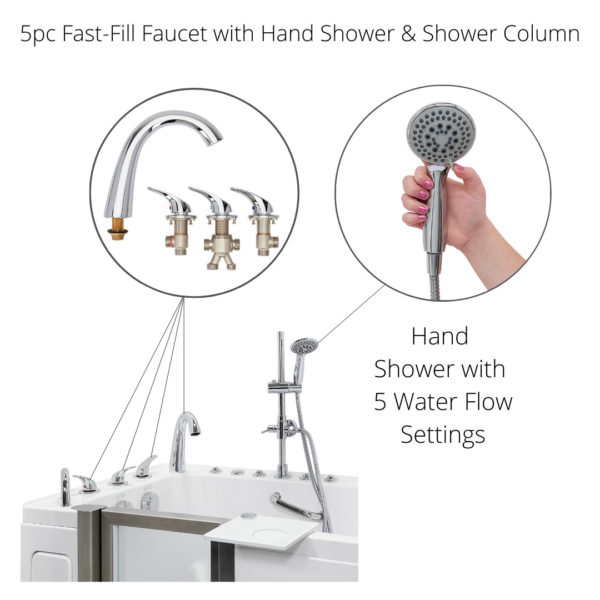

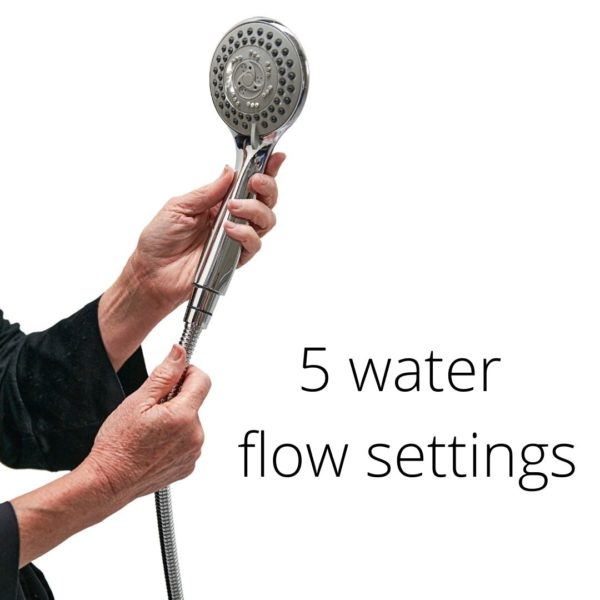

The Ella 5 Piece ¾” Fast Fill Faucet with pull out multi-function hand shower in chrome finish is perfect for your walk-in bathtub or any bathtub where fill time matters. The fast fill 5-piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull-out hand shower can be used for showering while the bathtub is filled to stay warm.
3. Complete Shower Column For Deck Mounted Faucets

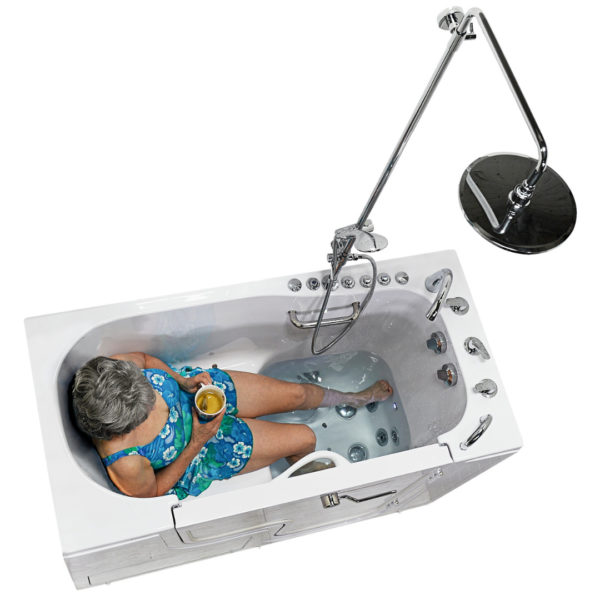

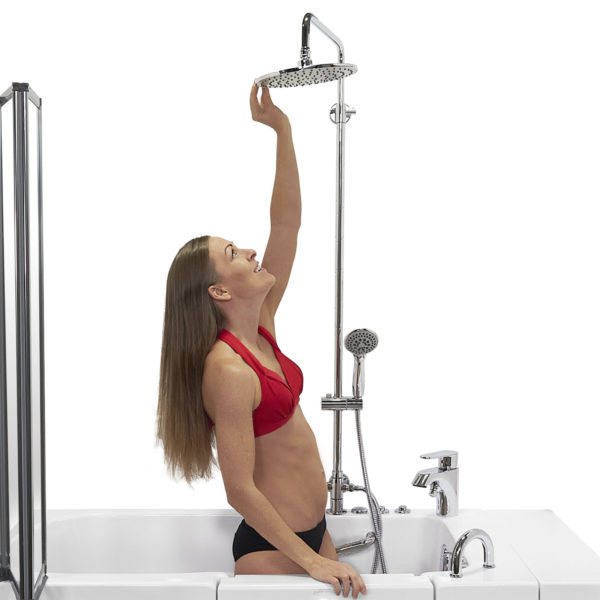

The Shower Column Kit connects to a diverter on an Ella brand 2 or 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.
1. Controller Options
We offer two control options: Push Control or Digital Control. Our Push Controls are easy-to-use push down buttons that will operate your chosen jetting and any additional features.
The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.
2. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs
The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.
